STAIDTREAT® KIT BOX System
The STAIDTREAT® is an innovative modular system designed to
aesthetically conceal the acoustic treatment in its room and make it. The finishing plate is similar for the three options and conceals the
imperceptible. The STAIDTREAT® consists of three different models remaining engineering portion of each model. This pressed mineral
with very different acoustic features, namely: STAIDTREAT® BXA, granulate plate also combines the absorption and unidirectional
BXW and WBA. micro-diffusion features.
The different specificities of each model provide as a whole an This range of panels is particularly meant for small and medium-sized
outstanding acoustic balance. Thus, the resulting aesthetic look is a rooms, ranging from studios to conference rooms and small
light, sober and very pleasant design. auditoriums. |
| |
DOWNLOAD BROCHURE |
|
-
HI-FI ROOMS
-
HOME STUDIOS
-
INSTRUMENTS ROOMS
-
HOME THEATRES
-
LISTENING ROOMS
-
HOME CINEMAS
|
| |
|
|
|
|
|
|
Features:

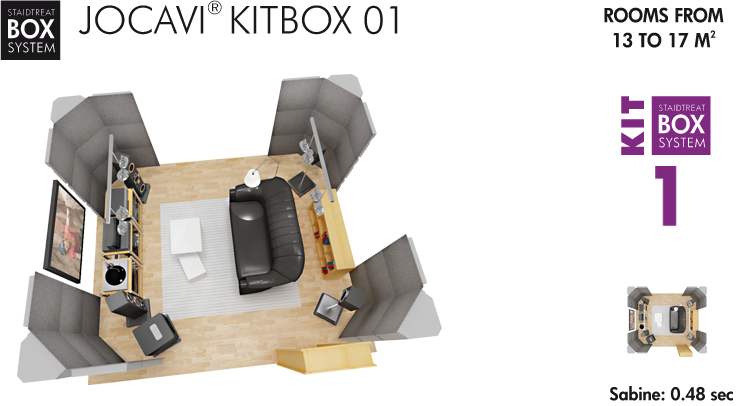

The JOCAVI® KIT BOX 01 has been created for small-sized home-cinema rooms, home-studios and rehearsal rooms.
The acoustic treatment modules must also be placed in relation to the listener and the speakers, while minimizing the SBIR (speaker-boundary interference response) and the modal emphasis
to produce a frequency response as flat as possible in the room. Give your ears an opportunity and see how the performance of your sound system improves.
All packs are supplied with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.
Where to apply:
Rooms with an area between: 13 and 17 square meters.
Rooms with volumes between: 35 and 45 cubic meters.
For use in small-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
Graphic
RT (s) |
 |
1,0 |
0,8 |
0,6 |
0,4 |
0,2 |
0 |
| |
63 Hz |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
8 K |
|
|
|
|
|
|
|
|
63 Hz |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
8 K |
RT |
0.48 |
0.44 |
0.43 |
0.52 |
0.53 |
0.47 |
0.47 |
0.49 |
0.48 |
Sabine: 0.48 sec
Acoustic features:

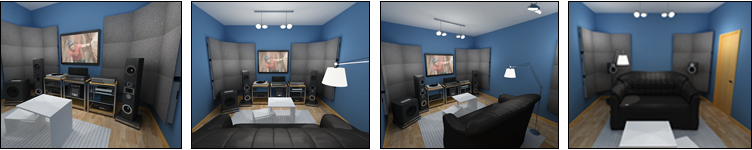

These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated rooms were tested with all the
materials and equipments shown in the images, and the mentioned JOCAVI®KIT BOX 01 acoustic panels.
Traditional construction room with the following features:
Dimensions: (L,W,H): 4.31m / 3.58m / 2.80m.
Walls: masonry with painted fine stuff and a wooden door.
Ceiling: 12 mm - thick plaster.
Floor: natural floating parquet.
KIT BOX 01 QUANTITIES:
| Reference |
Panels |
Units |
Absorbent |
Tuned |
| BXA060 |
Staidtreat®BXA |
12 |
- |
V |
| BXW060 |
Staidtreat®BXW |
9 |
- |
V |
| WBA060 |
Staidtreat®WBA |
12 |
V |
- |
|
|
|
Features:
The JOCAVI® KIT BOX 02 has been created for small-sized home-cinema rooms, home-studios and rehearsal rooms.
The JOCAVI® KIT BOX 02 approach consists in adjusting the room dimensions to sizes which are slightly bigger than those of JOCAVI® KIT BOX 01. The acoustic treatment modules must
also be placed in relation to the listener and the speakers, while minimizing the SBIR (speakerboundary interference response) and the modal emphasis to produce a frequency response as
flat as possible in the room. Give your ears an opportunity and see how the performance of your sound system improves.
All packs are supplied with assembly instructions, as well as the glues and tools which are necessary to apply the acoustic modules.
Where to apply:
Rooms with an area between: 17 and 24 square meters.
Rooms with volumes between: 45 and 58 cubic meters.
For use in small-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
Graphic
RT (s) |
 |
1,0 |
0,8 |
0,6 |
0,4 |
0,2 |
0 |
| |
63 Hz |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
8 K |
|
|
|
|
|
|
|
|
63 Hz |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
8 K |
RT |
0.50 |
0.48 |
0.57 |
0.56 |
0.50 |
0.47 |
0.49 |
0.51 |
0.51 |
Sabine: 0.51 sec
Acoustic features:

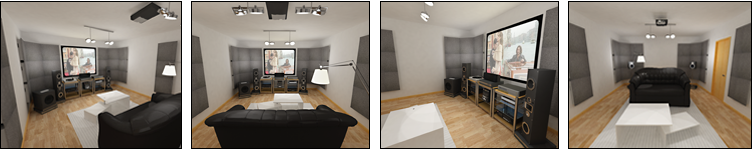

These values were obtained by simulation in specific JAS® software and later confirmed through acoustic analyses in the rooms. The simulated rooms were tested with all the
materials and equipments shown in the images, and the mentioned JOCAVI® KIT BOX 02 acoustic panels.
Traditional construction room with the following features:
Dimensions: (L,W,H): 5,82m / 4,00m / 2,50m.
Walls: masonry with painted fine stuff and a wooden door.
Ceiling: 12 mm - thick plaster.
Floor: natural floating parquet.
KIT BOX 02 QUANTITIES:
| Reference |
Panels |
Units |
Absorbent |
Tuned |
| BXA060 |
Staidtreat®BXA |
12 |
- |
V |
| BXW060 |
Staidtreat®BXW |
12 |
- |
V |
| WBA060 |
Staidtreat®WBA |
18 |
V |
- |
|
|
|
DESCRIPTION:
The JOCAVI® KIT BOX 03 has been created for rooms with an area between 17 and 24 square meters, so
small or medium-sized rooms such as home-cinema rooms, home-studios and rehearsal rooms.
JOCAVI® KIT BOX 03 it is composed of STAIDTREAT® acoustic modules which consists of three different
® models with very different acoustic features though with the same appearance, namely: STAIDTREAT® BXA as a Low-frequency absorbent tuned at 80Hz, the BXW® as a Low-frequency absorbent tuned at
160Hz and the WBA® , which is a broad band mid-high absorbent.
As a whole, these three different specificities provide an outstanding acoustic balance, thus the resulting
aesthetic look is a light and very pleasant design.
The finishing plate is similar to the three options and conceals the remaining engineering portion of each
model. This pressed mineral granulate plate also combines absorption with unidirectional micro-diffusion
features.
This KIT of panels it is the most recommended pack of acoustic panels for those who want an authentic
acoustic balance with a sober decoration. |
|
| |
|
Where to apply:
Rooms with an area between: 20 and 30 square meters.
Rooms with volumes between: 58 and 90 cubic meters.
For use in small-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
Graphic
RT (s) |
 |
1,0 |
0,8 |
0,6 |
0,4 |
0,2 |
0 |
| |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
|
|
|
|
|
|
|
|
|
|
|
|
FREQUENCY |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
RT |
aS |
0.27 |
0.23 |
0.28 |
0.28 |
0.26 |
0.27 |
0.27 |
|
Sabine: 0.27 sec
ACOUSTIC FEATURES:
Values were obtained by simulation in specific JAS® software and later confirmed
through acoustic analyses in the rooms.
• The simulated rooms were tested with all the materials and equipments shown in the images, and the mentioned JOCAVI® KIT BOX 01 acoustic panels. |
Traditional construction room with the following features:
Dimensions: (L,W,H): 4.90m / 3.60m / 2.80m.
Walls: masonry with painted fine stuff and a wooden door.
Ceiling: 12 mm - thick plaster.
Floor: natural floating parquet.
KIT BOX 03 QUANTITIES:
| Reference |
Panels |
Units |
Diffuser |
Absorbent |
Tuned |
| BXA060 |
Staidtreat®BXA |
12 |
- |
- |
V |
| BXW060 |
Staidtreat®BXW |
34 |
- |
- |
V |
| WBA060 |
Staidtreat®WBA |
37 |
- |
V |
- |
|
|
|
|
|

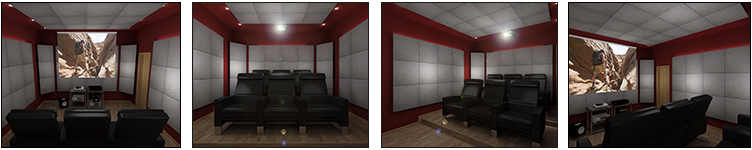

DESCRIPTION:

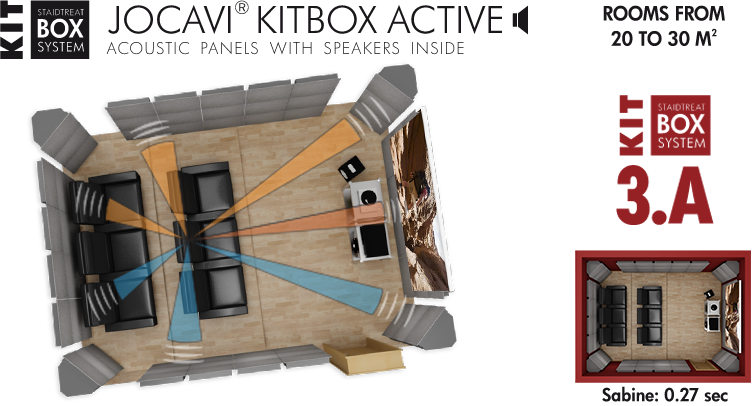

The STAIDTREAT KITBOX 03.A (Active Speakers System), is an innovative modular acoustic treatment method,
which combines with high quality performance speakers. The speakers are placed inside the absorbent boxes of
the WBF/A model. This set of acoustics and public address devices is designed to aesthetically conceal acoustic
treatment with speakers providing a good sound intelligibility, besides making technology imperceptible to
eyesight.
This system was essentially planned for 7.1 and 5.1 home-theatres surround systems, but it is also advisable for
conference rooms, restaurants and bars, public spaces and for background music or speech purposes. It is
composed by the two-way loudspeaker mounted inside the acoustic panel and by a self-amplified Subwoofer to
be placed on the floor of the room. It has been created for small and mid-sized home-cinema rooms. It is a
discrete system that combines acoustic treatment and the embedded speakers. The approach consists on
adjusting the number of the modules to the room dimensions.
All packs are supplied with assembly instructions, as well the necessary mounting accessories to apply the
acoustic modules.
Surround sound is the idea of engaging a listener in sound, just like a movie theater. Sound is half of the
importance of the entertainment experience and the speaker placement is essential to experiencing the true
impact of movies and music.
A 7.1 surround system has seven discrete audio channels, Left, Right, Center, Left Surround, Right Surround,
Left and Right Back, and of course, the Subwoofer. |
|
| |
|
Where to apply:
Rooms with an area between: 20 and 30 square meters.
Rooms with volumes between: 58 and 90 cubic meters.
For use in small and medium-sized home-theatre rooms, home-studios, Hi-fi rooms or instrument rooms.
Graphic
RT (s) |
 |
1,0 |
0,8 |
0,6 |
0,4 |
0,2 |
0 |
| |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
|
|
|
|
|
|
|
|
|
|
|
|
FREQUENCY |
125 Hz |
250 Hz |
500 Hz |
1 K |
2 K |
4 K |
άS |
0.27 |
0.23 |
0.28 |
0.28 |
0.26 |
0.27 |
|
Sabine: 0.27 sec
ACOUSTIC FEATURES:
Values were obtained by simulation in specific JAS® software and later confirmed
through acoustic analyses in the rooms.
•The simulated and tested rooms are totally empty, there are only considered the revetment
materials and the acoustic panels.
•The simulated rooms were tested with all the materials and equipments shown in the images, and
the mentioned JOCAVI® KITBOX 03.A acoustic panels.
Traditional construction room with the following features:
Dimensions: (L,W,H): 4.90m / 3.60m / 2.80m.
Walls: masonry with painted fine stuff and a wooden door.
Ceiling: 12 mm - thick plaster.
Floor: natural floating parquet. |
|
KIT BOX 03.A QUANTITIES:
Reference |
Panels |
Units |
|
|
|
BXA060 |
Staidtreat®BXA |
10 |
- |
- |
V |
BXW060 |
Staidtreat®BXW |
24 |
- |
- |
V |
WBA060 |
Staidtreat®WBA |
31 |
- |
V |
- |
BXA060A |
Staidtreat®BXA Active  |
02 |
- |
V |
- |
WBA060 |
Staidtreat®WBA Active |
06 |
- |
V |
- |
|
| |
| STANDARD MINERAL GRANULATED COLOURS |
|
 |
|
* Included aluminium mounting accessories.
The Same Finishings, Different Acoustic Performances |
|
STAIDTREAT® BXA
Corner Bass Trap |
STAIDTREAT® BXW
Wall Bass Trap |
STAIDTREAT® WBA
Wall Mid Range Absorbent |
|
|
|
 |
 |
 |
The STAIDTREAT® BXA is a low-frequency absorbent
panel. It is tuned to 63 Hz and is meant to be placed in
o 90 corners. The principle used to develop the
STAIDTREAT® BXA is exclusive to JOCAVI®.
It
combines an ABS box, which has two appropriately
enhanced closed resonance chambers inside, with
mass and density components. These components
have been specifically developed for this model.
Therefore, because of its careful development, this
panel has become one of the best offers in the market
for low-frequency absorbent materials.
In order to boost bass absorption, we recommend that
this panel is used together with the STAIDTREAT®BXW,
as the latter functions close to the harmonics of this
model.
Features:
• Tuned to 63Hz.
• Average absorption: 0.86 [>50Hz;<250KHz].
• Made of recyclable materials.
• Plate of pressed mineral granulate.
• Fire-resistance: M1.
• Application on ceiling and wall corners
• Package: 2 units.
• Installation: accessories included.
• Available in 5 colours.
|
|
The STAIDTREAT® BXW is a low-frequency absorbent
panel. It is tuned to 125 Hz and is meant to be placed on
walls or normal or T-type ceilings. It works when tuned
to 125 Hz, in the first harmonic of the
STAIDTREAT® BXA, thus exponentially boosting the
absorption of basses when both panels are used
together.
This tuned panel uses an open resonance chamber,
which is combined with a membrane that was
developed and calibrated to enhance its performance.
The visible outer plate is made of a porous and
permeable mineral granulate which is highly absorbent
in the medium and high frequencies, thus further
widening the absorption range of this panel.
Features:
• Tuned to 125Hz.
• Average absorption: 0.83
[>50Hz; <250KHz].
• Made of recyclable materials.
• Plate of pressed mineral granulate.
• Fire-resistance: M1.
• Application on ceilings and walls.
• Package: 4 units.
• Installation: accessories included.
• Available in 5 colours.
|
|
The STAIDTREAT® WBA is a medium-frequency
absorbent panel which is meant to be placed on walls or
normal or T-type ceilings.
This absorbent panel has been developed by
combining an adequately shaped high-density
polyurethane foam box with a filling composed of a
material that was exclusively manufactured for this
panel in order to increase its sound absorption
coefficient.
The outer finishing plate is made of a porous and
permeable pressed mineral granulate, which is highly
absorbent in the medium and high frequencies, thus
making this panel very balanced as regards
absorption/frequency.
Features:
• NRC : 0.66.
• Made of recycled materials.
• Plate of pressed granulated minerals.
• Fire-resistance: M1.
• Walls and T-ceilings ready applications.
• Package: 4 units.
• Installation: accessories included.
• Available in 5 colours.
|
|
|
|
| |
 . |
|
back to top  |
|
Contact us for a FREE Personalized Room Project. For bester results,
please fill in the enclosed Consulting form, or contact your Panel
Placement Specialist through info@jocavi.net or call +351 219243097,
so that we can properly assist you.
You can also simulate your
music room by yourself using the online JAS Acoustic Simulator.
|
|
|
