Description
DESCRIPTION

The SQUARYDIFFUSOR® is a diffusion panel that has a higher balance between diffusion/absorption. It is a 2D quadratic diffuser with five slightly uneven gradients. The SQUARYDIFFUSOR® is made of low-density clay paste. Due to its quadratic shape and the raw material it uses, its diffusion and absorption features are well balanced for a diffusion panel. The SQUARYDIFFUSOR® enables quite good control of acoustics by fragmenting the reflected energy, while the absorption factor is not too high, therefore quite recommended for installation in small-sized rooms, by making the acoustics of those spaces quite homogeneous. This product is also available in individual tiles mainly proposed for big diffusion surfaces, with continuous coating (see more SQAT015); it’s an ideal product to the construction market.

FEATURES

Made with ceramic
Average diffusion: 0.57/m2 [>100Hz;<5KHz]
Fire-resistance: M0
100% recyclable
Package: 2 and 4 units
Installation: accessories included

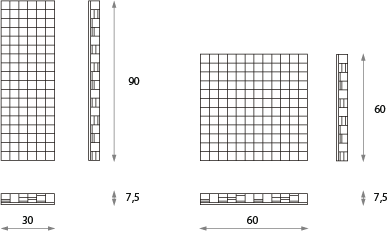

MODELS AND SIZES

MODELS
HEIGHT
WIDTH
DEPTH
WEIGHT
SQA090
90 cm
30 cm
7,5 cm
11.6 Kg
SQA060
60 cm
60 cm
7,5 cm
15.4 Kg
15 cm
15 cm
5,5 cm
0.6 kg




ABSORPTION COEFFICIENTS

Frequency [HZ]
STANDARD CERAMIC COLOURS
BLACK
GREY
RED
CREAM
YELLOW
WHITE
